Motor Driven Roller Conveyor Control Options

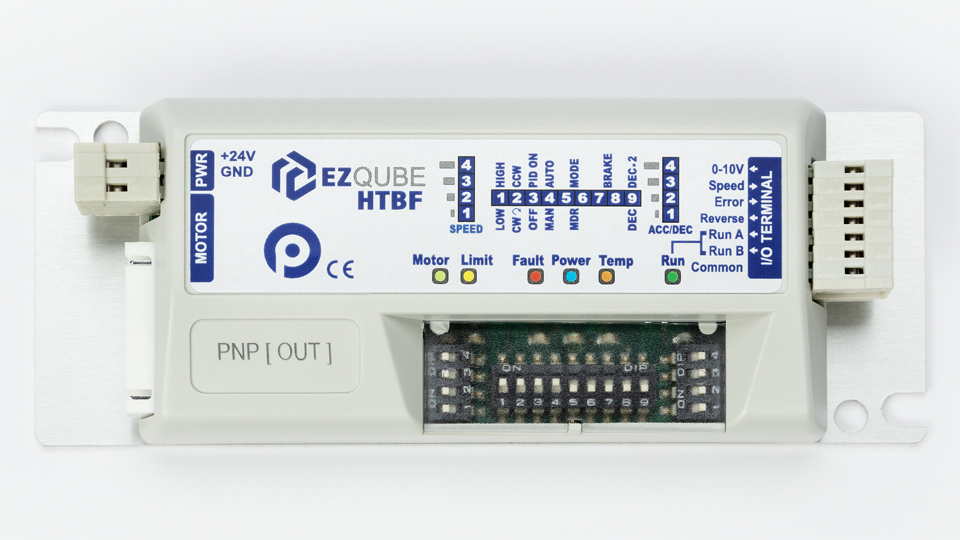

EZ-QUBE

ez cube



  • Economical drive card
  • Forward/Reverse Inputs & Error Output
  • Three Selectable Preset Speeds
  • 0-10V Analog Speed Control

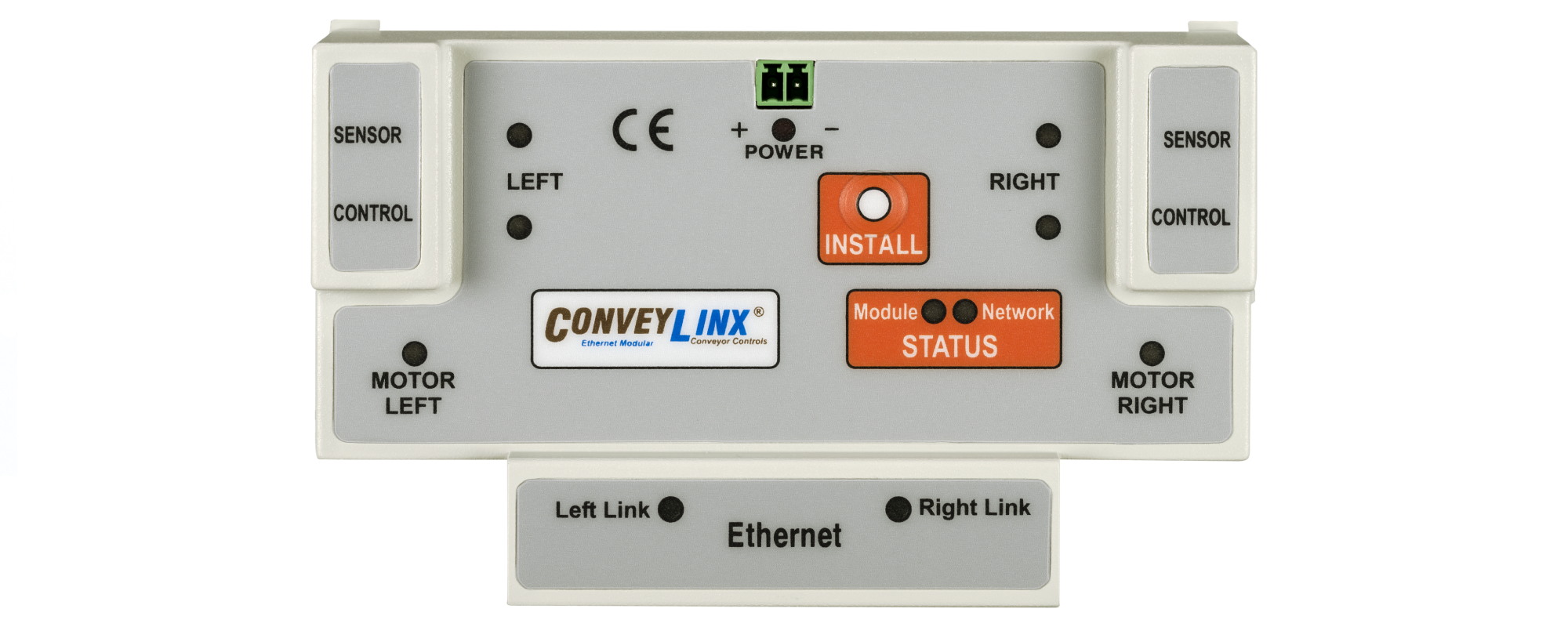

ERSC

ersc



  • ERSC 24V motor drive roller control system
  • 1 or 2- zones per control module
  • Compact and clean design
  • Choice of simple, mid-level, or advanced drive cards
  • Simple installation and quick commissioning
  • Basic programming without a computer.
  • No tools Install and remove

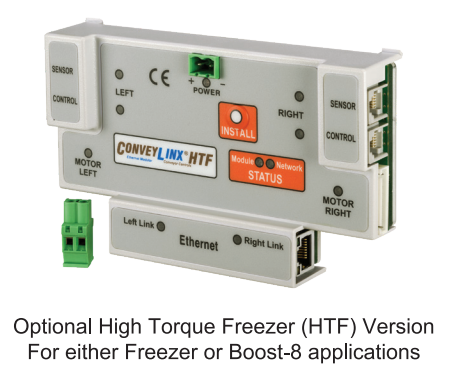

ERSC-HTF

ersc htf





























  •  24V motor drive roller control system
  • 1 or 2 - zone per control module
  • Compact and clean design
  • Choice of simple, mid-level, or advanced drive cards
  • Same as ERSC but higher torque and Amp rating
  • Basic programming without a computer
  • No tools install and the removal

BackupSensor

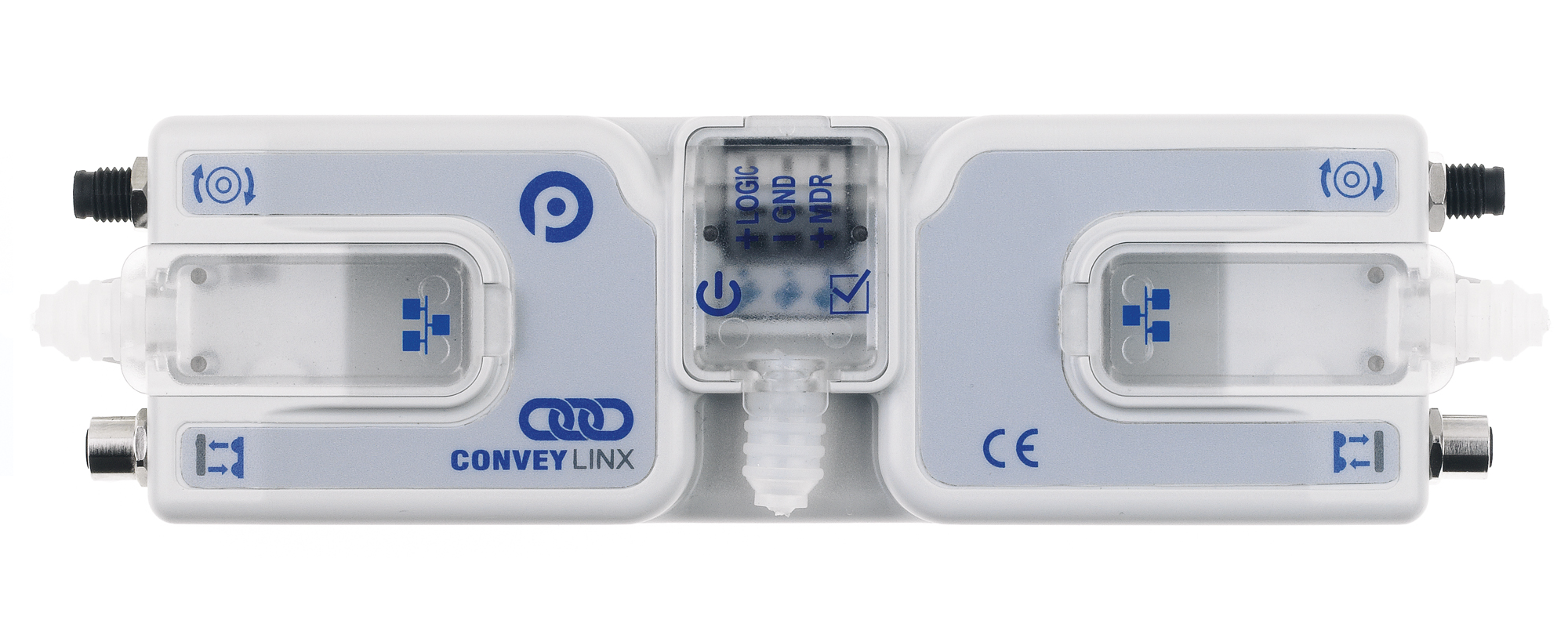

Ai2 Card

ai2 card



  • 24V motor drive roller (MDR) or geared drive control system
  • IP-54 drive package (For wet locations in most cases)
  • 2 zones per module reduce cost and save time
  • ZPA logic built in for quick installation
  • Seamless integration with MDR programming tools/software.
  • Capable of user-programmable on-board logic for special applications.
  • 4-pin M8 standard connectors for motors and sensors
  • Separate Motor and Logic power – allows the Controller to stay online and communicate even when Motor power is lost.

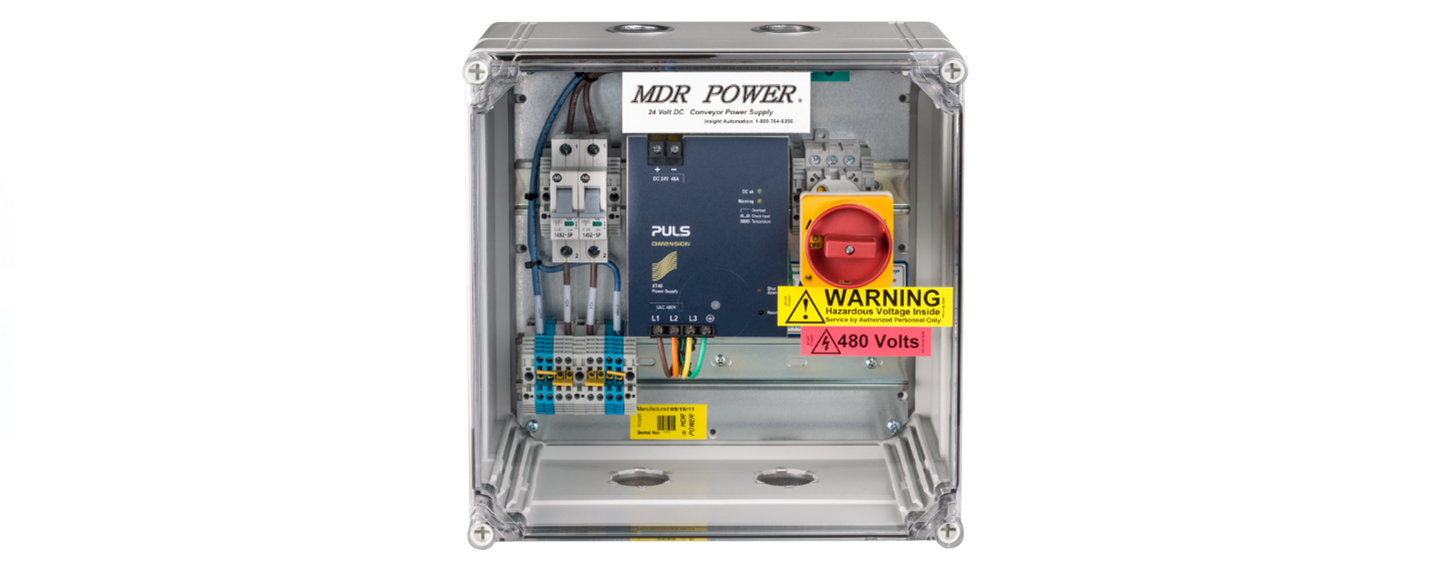

Power Supply Options

mdr power supply



  • Pre-engineered 24 VDC power supplies.
  • Lockable disconnect
  • Reduced voltage drops
  • Economical
  • Available in 110, 220, and 460 VAC inputs.

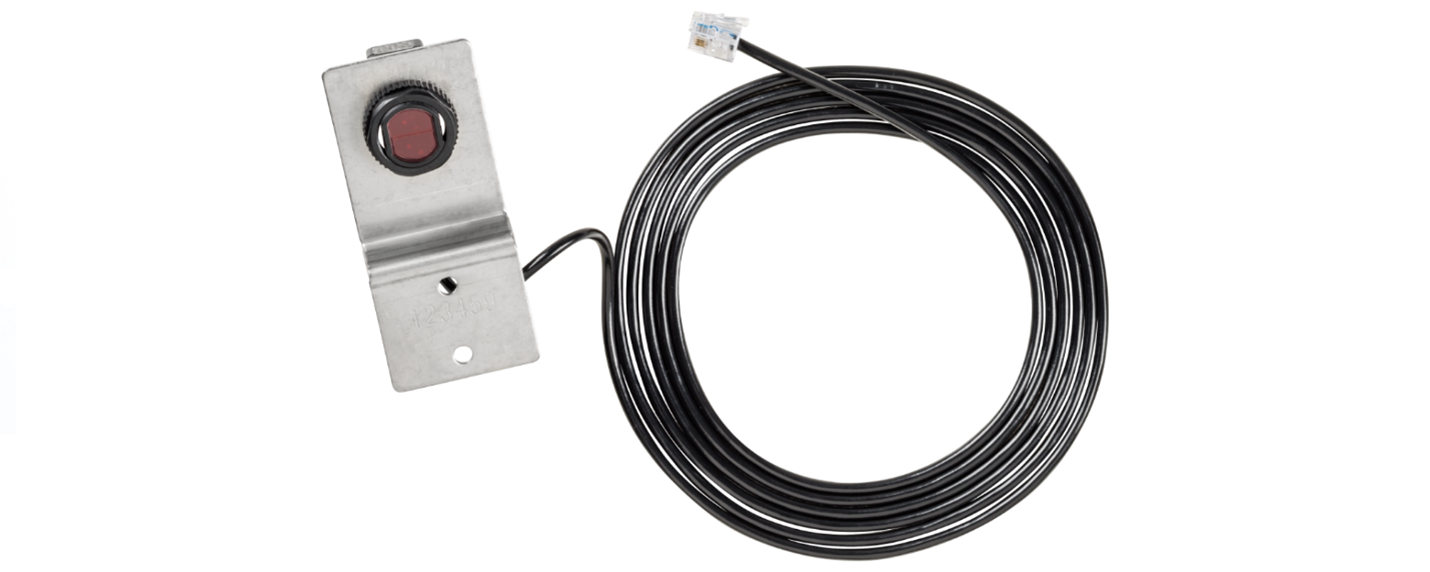

Zone Sensors

zone sensor



  • Faster commissioning times
  • RJ-12 connector for rapid no-tools install
  • Available in reflective and diffuse modes.
  • Economical





Wake up/Backup Photo Sensor Kits

backup sensor

























  •  Zone sensor can be used for wake up/backup when installed on upstream / downstream conveyors
  • Faster commissioning times
  • Economical

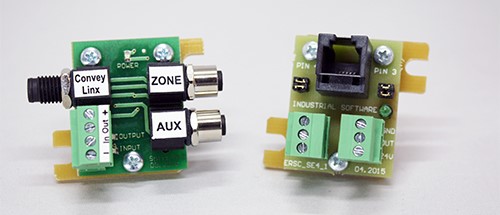

Terminal Interface Kit

terminal interface kit



















  •  Provides hardware interface to external devices
  • Convenient RJ-12 connector and cable (supplied)
  • Two inputs and output. Inputs NPN and PNP auto-detect
  • Self-contained power (Load limits apply)
  • Input and output functions can be programmed
